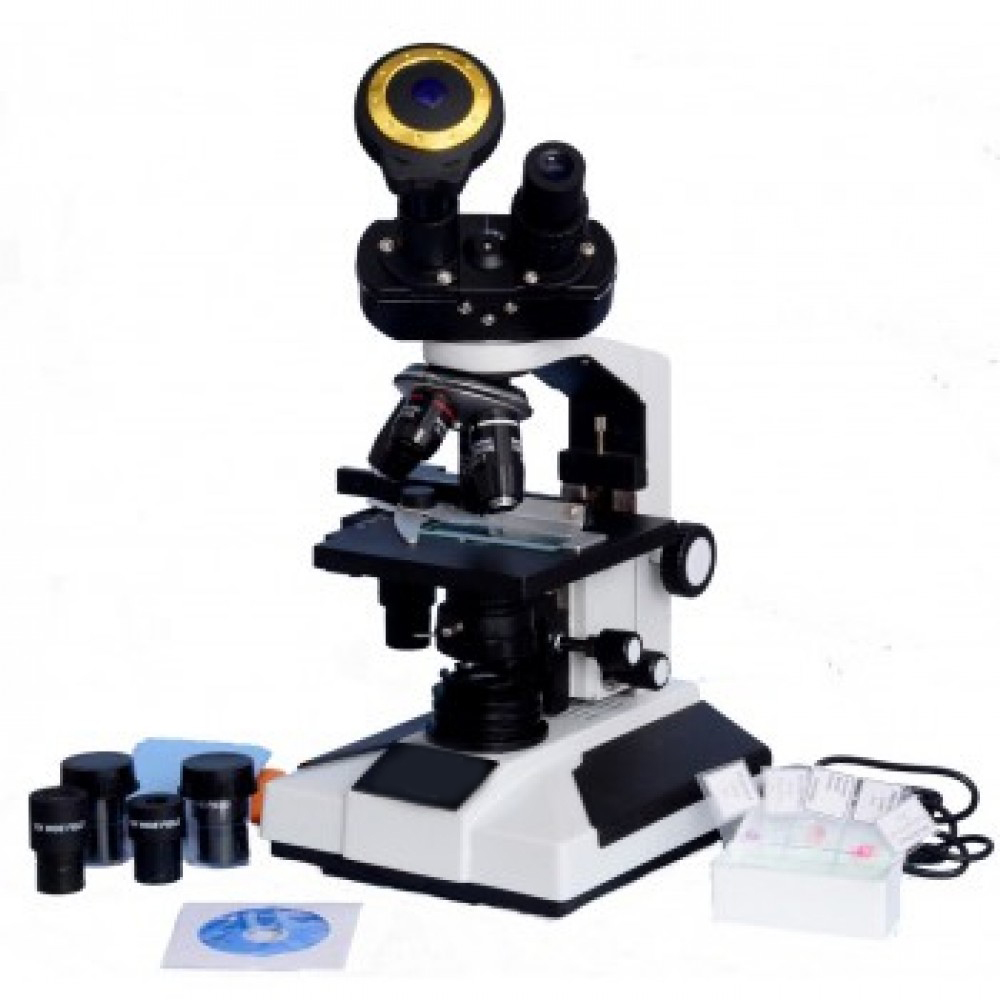

Digital Binocular Microscope With 3.0MP Camera

> Sturdy Metal body with all-glass optics.
> Complimentary Pack of 50 Slides-1-1.2mm, 75x26mm & Cover Slips.
> SMPS Based Power Supply ie compatible for wide Voltage range from 100V to 220 Volts.
> Ergonomic design with CLARITY optics.
> Eight Magnification configurations: 40X, 60X, 100X, 150X, 400X, 600X, 1000X, 1500X.
> High-Quality CLARITY Glass optics with Anti-fungus, Anti-reflection coating.
> All objectives are perfectly para-focused with no image shift thus reproducing Sharp and Clear Images.
> Professional brand new microscope, used by Doctors, Pathologists, Vets, Students, Researchers.
> High-Quality Quadruple nosepiece with positive click stops.
> Movable Abbe Condenser 1.25NA, adjustable iris diaphragm.
> Slide and Objective protection via an upward stage stopper.
> Dual Side focusing controls.
> Coarse and fine focusing controls for precise focusing of the specimen.
> LED Illumination standard (Halogen illumination on request) Quality Tested, Body parts made of Aluminium & solid brass for rugged durability.

Technical Specifications

Observation Head: Binocular observation head inclined at 45°, rotateable through 360°, interpupillary distance adjustment ring 54-74mm, dioptric adjustment ring on the left having adjustable dioptric scale.
Main body: All parts die-cast to provide long life & good mechanical strength.
Focusing: Precise and Separate coarse and fine focusing controls with ergonomically placed knobs on both directions.
Magnification Configurations: 40X, 60X, 100X, 150X, 400X, 600X, 1000X, 1500X
Eyepieces: Widefield 10x, 15x pairs
Objectives: SEMI PLAN ACHRO Din objectives 4x, 10x, 40/45x s. L. 100x oil immersion (s. L. ).
Nosepiece: Quadruple nosepiece revolves on ball bearing.
Mechanical stage: Co-axial low positioned mechanical x-y stage of size 120 x 125 mm with stage fine vernier graduation.
Condenser: Abbe condenser n. A. 1. 25 having an aspherical lens, adjustable iris diaphragm.
Illumination: Inbuilt white bright LED Illumination with SMPS based power supply 100-220V.

3.0MP CMOS CAMERA SPECIFICATIONS:

SENSOR PARAMETER- 1/2" 1.3MP CMOS
RESOLUTION: 2048*1536
FRAME RATE- 7.5 FPS@2048*1536
PIXEL SIZE- 3.8µm*3.8µm
SENSITIVITY- 1.0V/LUX-SEC@550nm
COLOUR FILTER- RGB LAYER PATTERN
WHITE BALANCE- 1.5M
COMPATIBILITY- WINDOWS XP/7/8
RATE OF FIELD- 1/6
OPTICAL MAGNIFICATION- 10X
TUBE ADAPTER DIA.- 23.20mm or 30.00mm
CONNECTION- OCULAR TUBE OR C-MOUNT
UNIFORM FOCUSING: YES
POWER SUPPY: USB 2.0 PORT
