DESCRIPTION:-

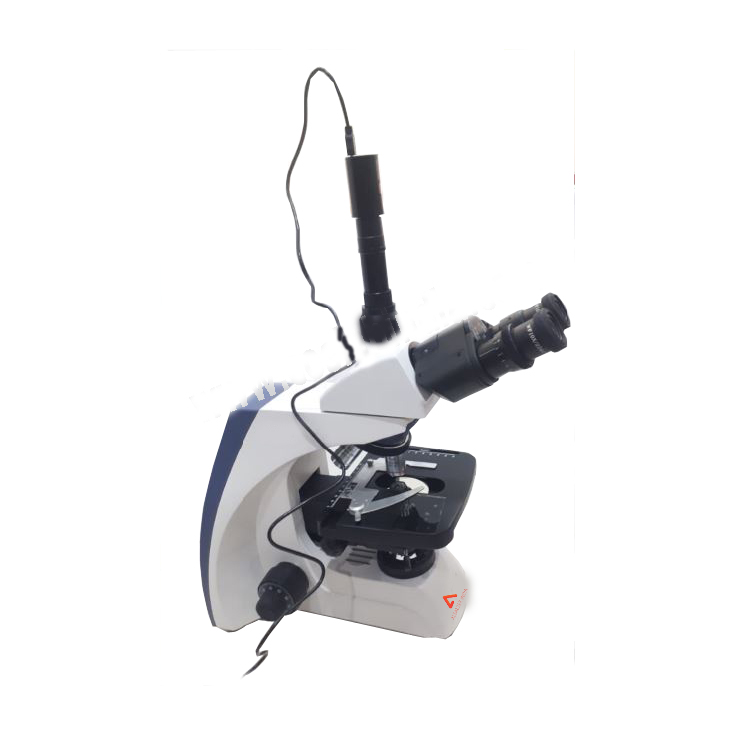

COSHD5000-1080P camera is a multiple interfaces (HDMI+USB2.0/WIFI+SD card) CMOS camera and it adopts ultra-high performance CMOS sensor as the image-picking device. USB/WIFI is used as the data transfer interface. For HDMI output, a camera control panel and toolbar are overlaid on the HDMI screen, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video. For USB/WIFI output, unplug the mouse and plug in the USB/WIFI cable/adopter, then the video stream can be transfer to computer with the advanced software Coslabview. COSHD5000-1080P camera can be used for microscope, industrial stereo microscope, on-line inspection etc.

SPECIFICATION OF MICROSCOPE:-

COSHDWIFI5000 CAMERA

FEATURES:-

v All in 1(HDMI+USB/WIFI+SD card) C-mount camera with high sensitivity CMOS sensor.

v Simultaneous HDMI & USB/WIFI output.

v Built-in mouse control.

v Built-in image capture & video record to SD card.

v Built-in camera control panel for mouse control.

v Built-in toolbar including zoom, mirror, comparison, freeze, cross, browser functions.

v Ultra-Fine color engine with perfect color reproduction capability (USB).

v With advanced video & image processing application.

v Support standard UVC for Windows/Linux/Mac (USB).

v CNC shell molding design.

TECHNICAL SPECIFICATION:-

Model No : COSHDWIFI5000-1080P

Sensor & Size (mm) : 1080/Sony IMX236(C) 1/2.8"(5.5x3.4)

Pixel (?m) : 2.8x2.8

G Sensitivity Dark Signal : 510 mv with 1/30s, 0.15 mv with 1/30s

FPS/Resolution : 60@1920x1080, 30@1920x1080

Binning : 1x1

Exposure : 0.4ms~999ms

INTERFACE & BUTTON FUNCTIONS

USB/WIFI : USB/WIFI Camera or USB Mouse

HDMI : HDMI Output

DC12V : 12V Power in

SD : SD Card Slot

ON/OFF : Power On/Off Switch

LED : Power ON Indicator

OTHER SPECIFICATION FOR HDMI OUTPUT:-

UI Operation : With USB Mouse

Image Capture : High Speed in SD Card

Video Record : 1080 30fps in SD Card

Camera Control Panel : Including Exposure, Gain, White Balance, Color Adjustment,

Sharpness and Denoising Control

Toolbar : Including Zoom, Mirror, Comparison, Freeze, Cross, Browser Function

OTHER SPECIFICATION FOR USB OUTPUT:-

White Balance : Auto White Balance

Color Technique : Ultra-Fine Color Engine (USB)

Capture/Control API : Standard UVC for Windows/Linux/Mac(USB)

Recording System : Still Picture or Movie (USB)

SOFTWARE ENVIRONMENT (FOR USB 2.0 CONNECTION):-

Operating System: - Microsoft® Windows® XP /Vista /7/8/8.1 (32 & 64 bit)

OSx (Mac OS X), Linux

CPU: Equal to Intel Core2 2.8GHz or Higher Memory: 4GB or More

PC Requirements: - USB Port: - USB2.0 High-speed Port

Display: 19” or Larger

CD-ROM

Software:- Coslabview2018
