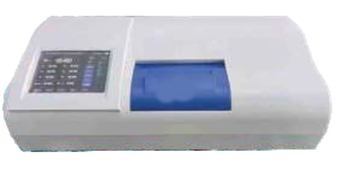

Laboratory Automatic Polarimeter With Peltier Manufacturer and Exporter

INTRODUCTION:

The polarimeter is an instrument used for determining the Optical rotation of
substances. In this way, the concentration, content, purity, etc of certain substances can be..nd out.Therefore, the polarimeter has become one of the most useful instruments in laboratories of sugar industry, pharmaceutical industry, oil re..ning, foodstuff industry, chemical industry, universities and scientific research old.

SILENT FEATURES

l Touch screen colour display

l Temperature display

l Faraday magneto-optical modulator

l Polarizer Polarizing ?lm

l Digital Polarimeter based on Optical null principle

l No warm-up time is required when instrument is switched on

l Measuring multiple scales - speci?c rotation, optical rotation,

l Sugar degree and concentration

l Automatic repetition-measurement for 6 times, and calculation of average value.

l Measurement of dark-coloured sample

l Response time 3/sec.

l Insulated Sample chamber to keep sample temp. constant

l User can set retesting sample between 1 to 6

l Photodiode Detector

l Data display - date, time, measuring mode, length of tube, temp. test time, measured value (1 - 6 values), average value.

l Purity method - saccharic concentration

TECHNICAL SPECIFICATIONS

l Measurement Mode : Optical Rotation, Specific Rotation, Sugar Degree and Concentration (Custom)

l Frequently Used Methods : 30

l Light Source : Light emitting diode (LED) up to 10.000hours) + precision interference filters

l WorkingWavelength : 589.4nm (Sodium D Spectrum)

l Measurement Range : ± 90° (Optical Rotation) 259° Z Sugar)

l Minimum Reading : 0.001°

l Accuracy : ± 0.004°

l Repeatability : 0.002°

l Min.Transmission os samples : 0.1% able to be measured

l Response Speed : 8°/S

l MeasurementTime : 6Time/26S

l SampleTemperature : Yes

l Temperature Control Mode : Peltier (Built-in)

l Temperature Control Range : 10-50°C

l Temperature Control Accuracy : ± 0.2°C

l Display : 8-inch color dot matrix touch LCD

l Calibration Method : Multi - point automatic calibration

l Data Storage : 10000 sets

l GMP Regulations : No

l Output communications interface : USB / Printer / U disk

l TestTubes : 200mm 100mm (Regular) 100(temp control)

l OptionalTubes : 50mm (regular) 200mm(temp control)

l Weight (Gross) : 36kg

l Dimensions : 860mm x 510mm x 470mm
